Led > High bay light > LED-HLL019

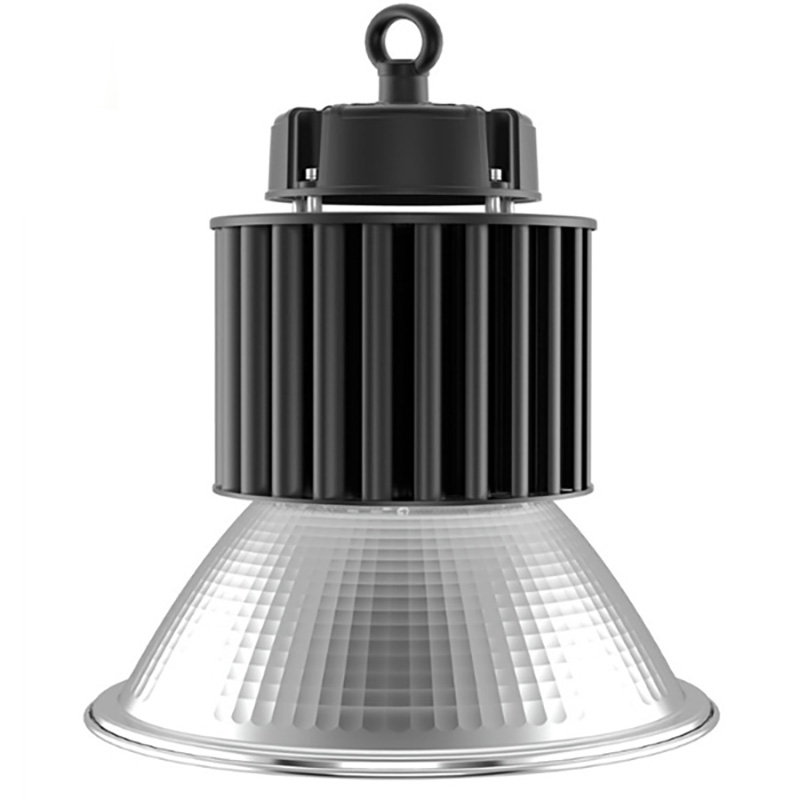

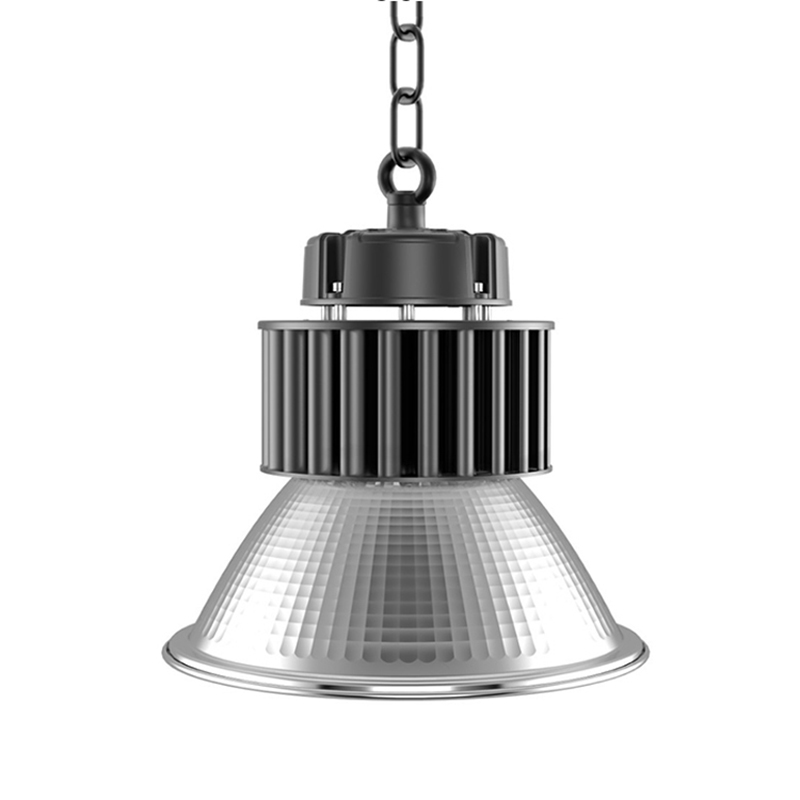

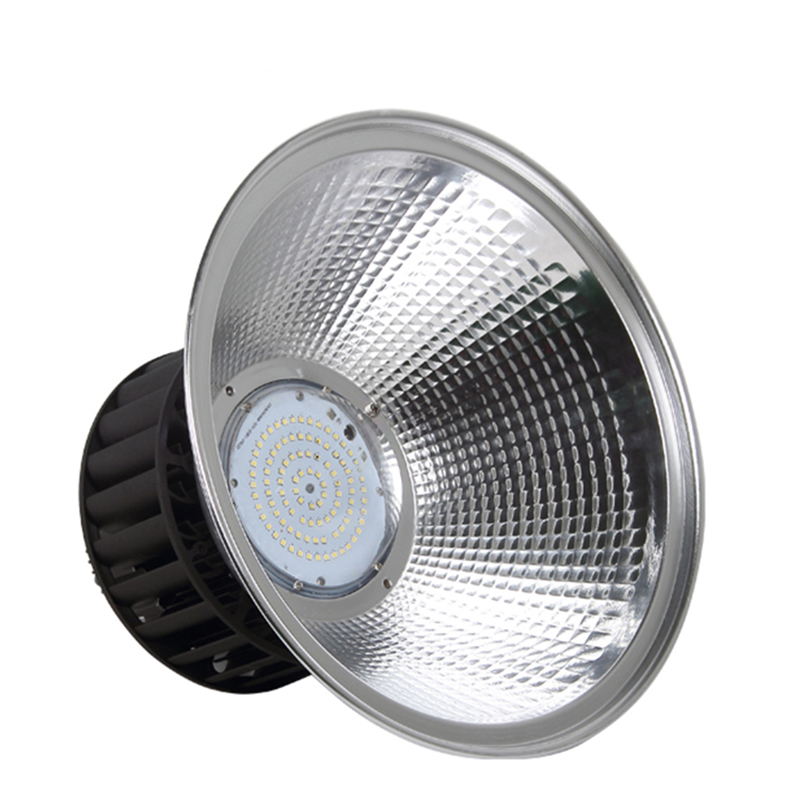

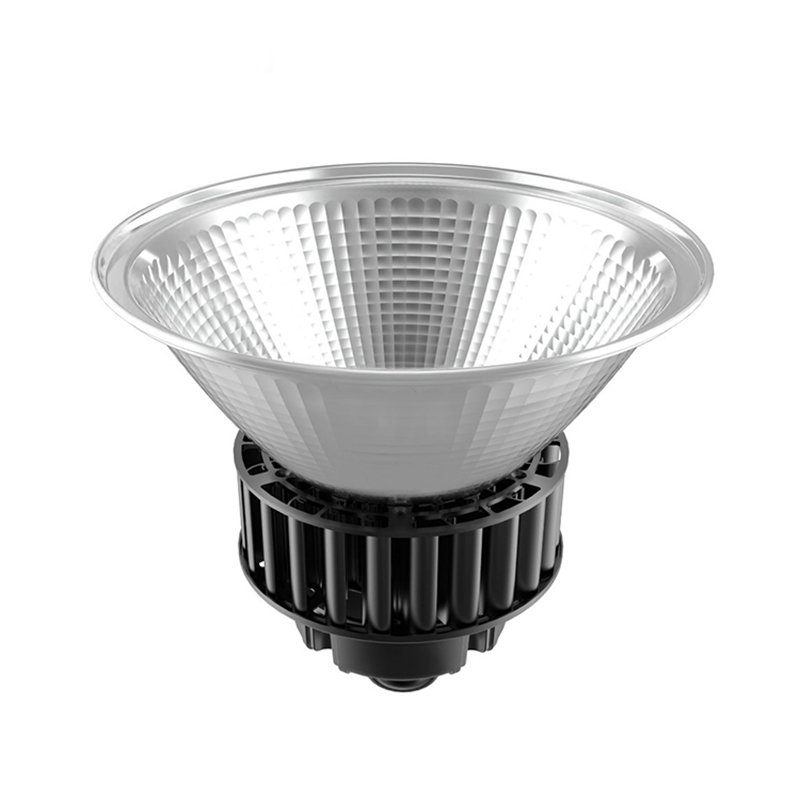

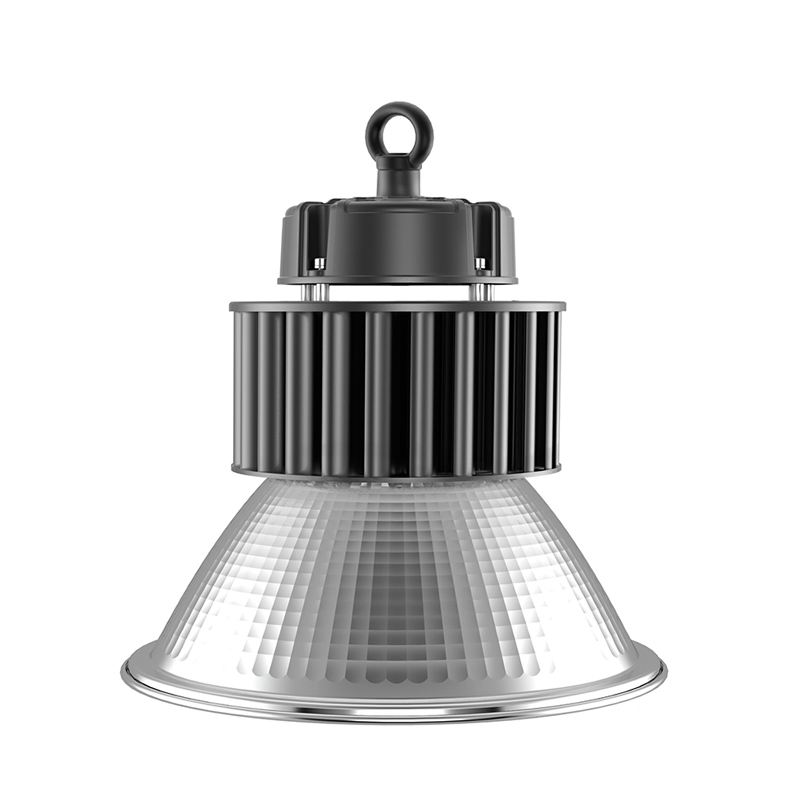

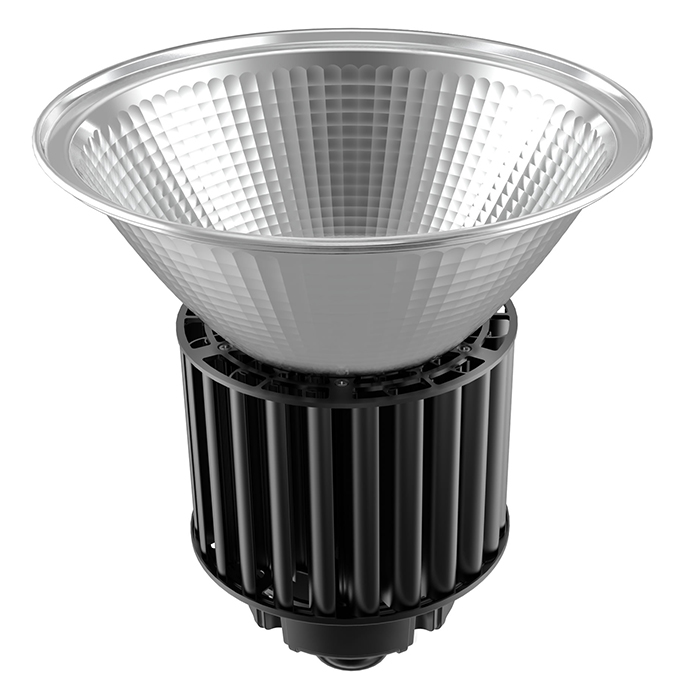

LED-HLL019

Product name: Led high bay light
Model:LED-HLL019
Power: 60W~250W
Input voltage:AC90~305V
Frequency:50/60Hz
CCT:2700~6500K
Protection level: IP54
Efficiency:>140lm/w
Application:  Warehouse, Factory, Industrial ,Garage, Workshop,supermarket etc.



  1. Low power consumption, high luminous efficiency and energy saving
  2. Easy to install and use.
  3. High efficiency, high accuracy, and long-life constant current LED power supply, the efficiency can reach as high as 91%
  4. No risk of mercury emission, No UV or RF interfcernce, No mercury or lead, environmental protection
  5. High heat conductivity, low luminous decay, pure light color and no ghosting.

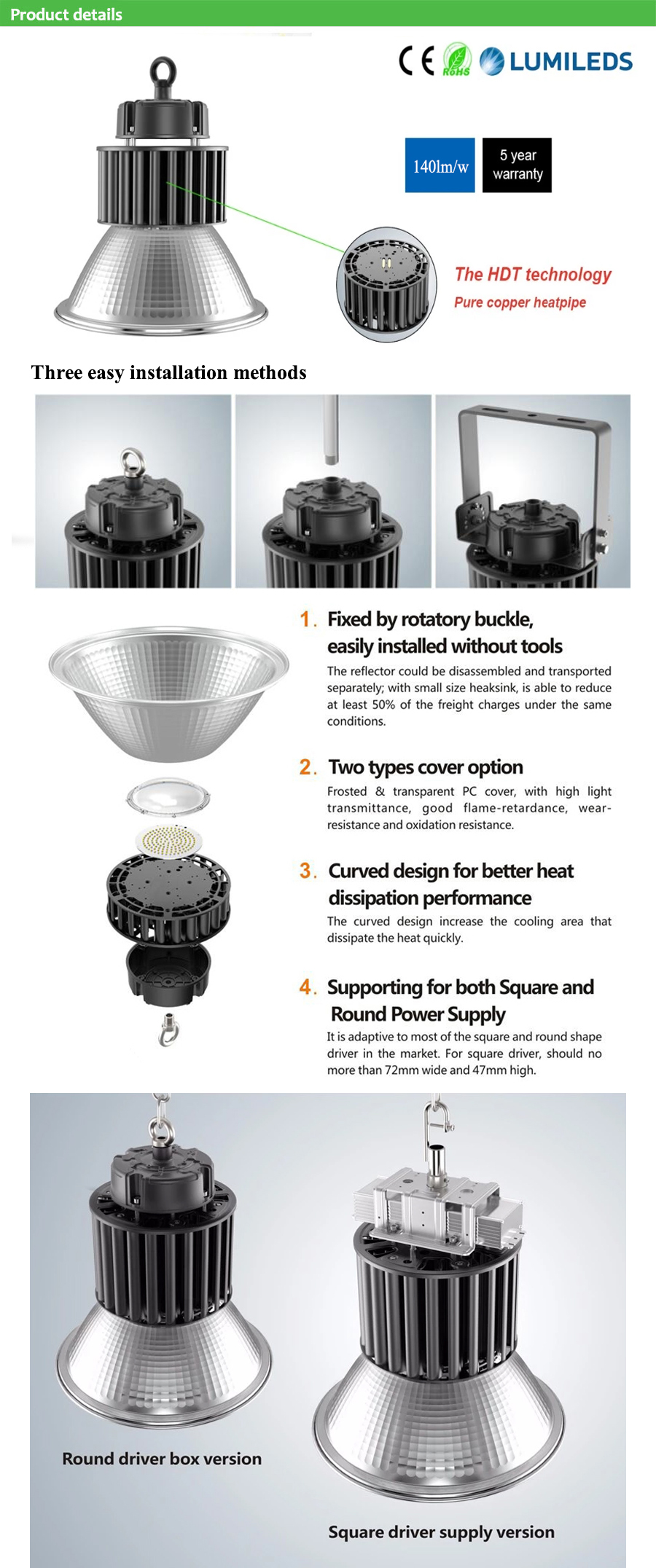

  6. Integrative design for heat sink and housing; The LED is closely connected to the surface. The heat From the LED is removed through the heat dissipation wing and also by air ventilation.
  7. The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful.
  8. Using high quality aluminum for production, fine workmanship, elegant appearance
  9. Recommend the use of warm white and white. Long life span with 50,000 hrs.
  10. Easy to install and use.

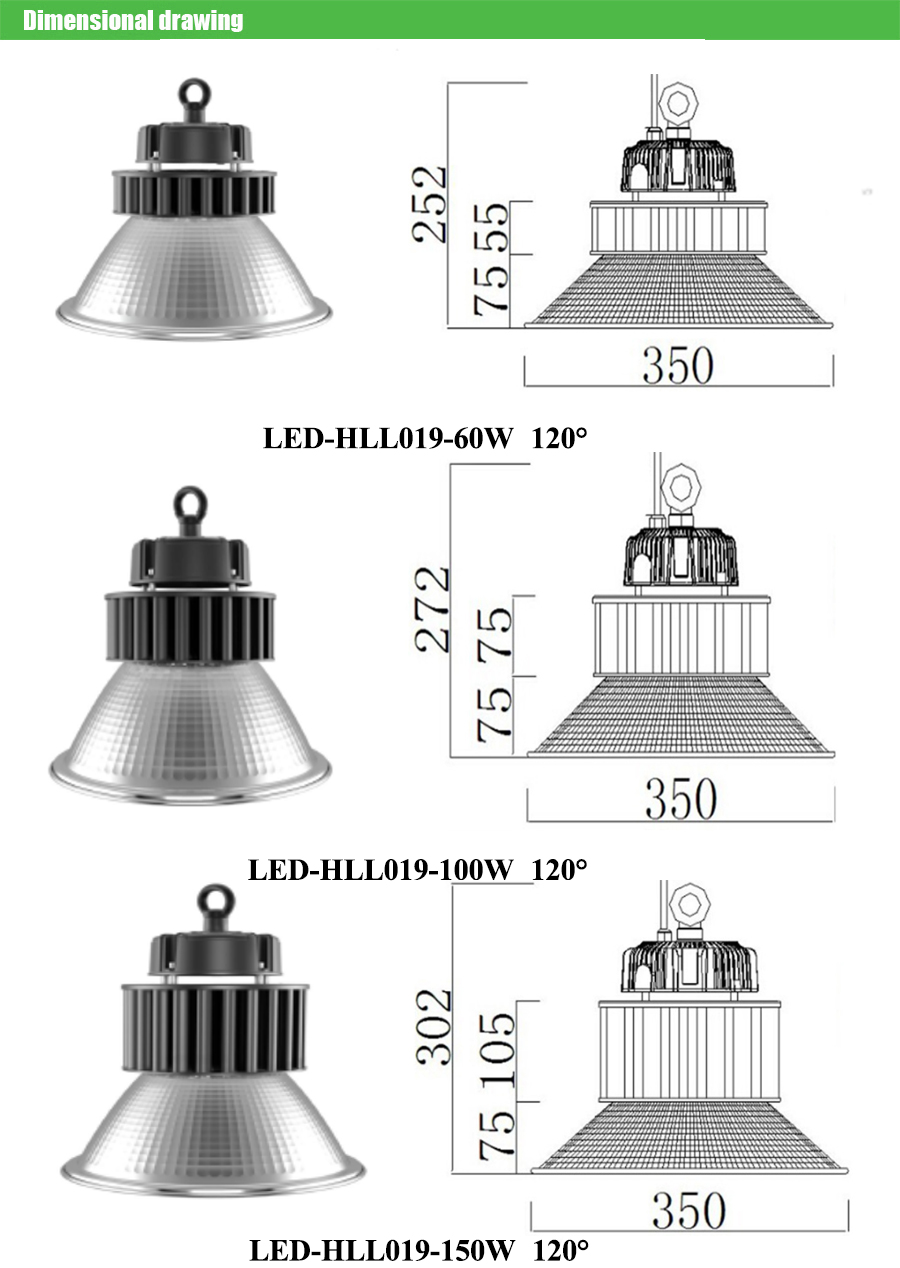

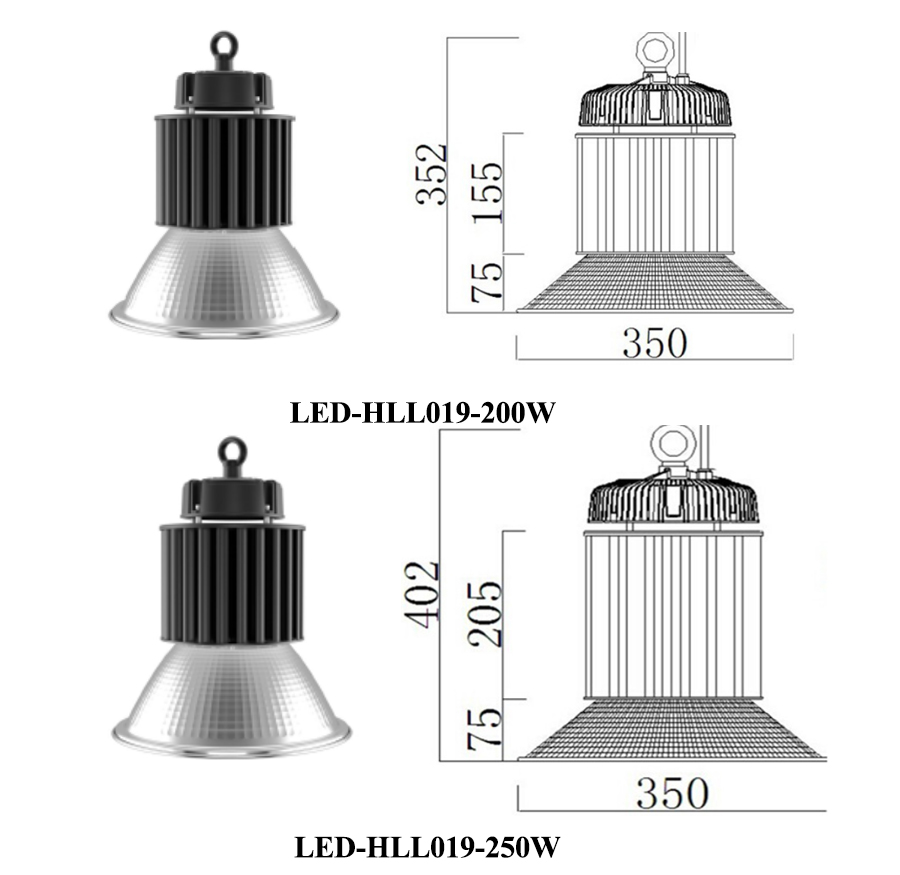

Item Descpription  LED-HLL019-60W LED-HLL019-100W LED-HLL019-150W LED-HLL019-200W LED-HLL019-250W
Input voltage 95~305VAC
Input frequency 50/60HZ
Input wattage 60±5% 100±5% 150±5% 200±5% 250±5%
Input current 0.26(230V) 0.43(230V) 0.71(230V) 0.87(230V) 1.09(230V)
Power factor >0.95(230V)
Luminous flux (5000K) 8400LM 14000LM 21000LM 28000LM 35000LM
Color temperature 3000~6500K
Color rendering index >70Ra
Lumen maintenance(2000h) 98%
Beam angle 45°,90°,120°
Average life  50000h
Work environmental temperature ­40°C­45°C
