Led > High bay light > LED-HLL020A

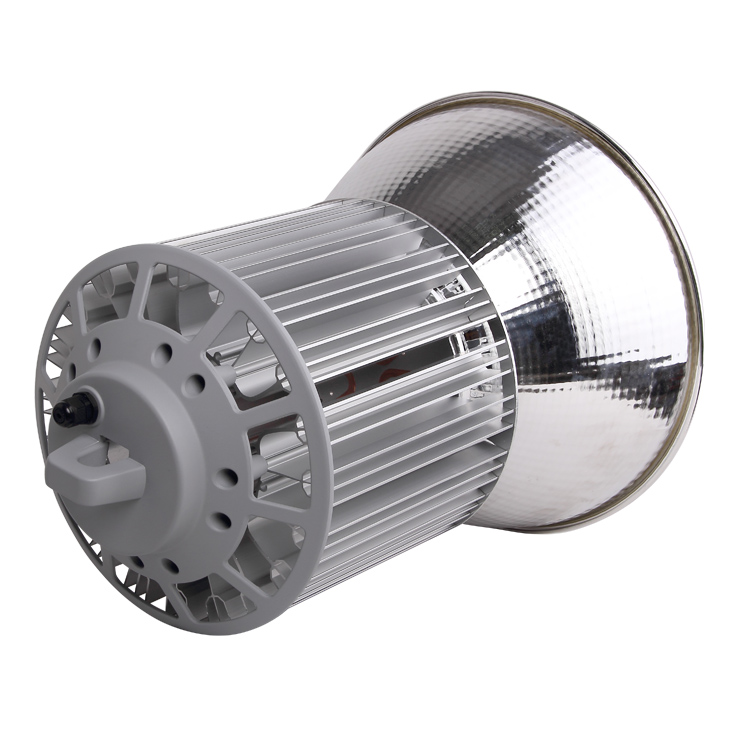

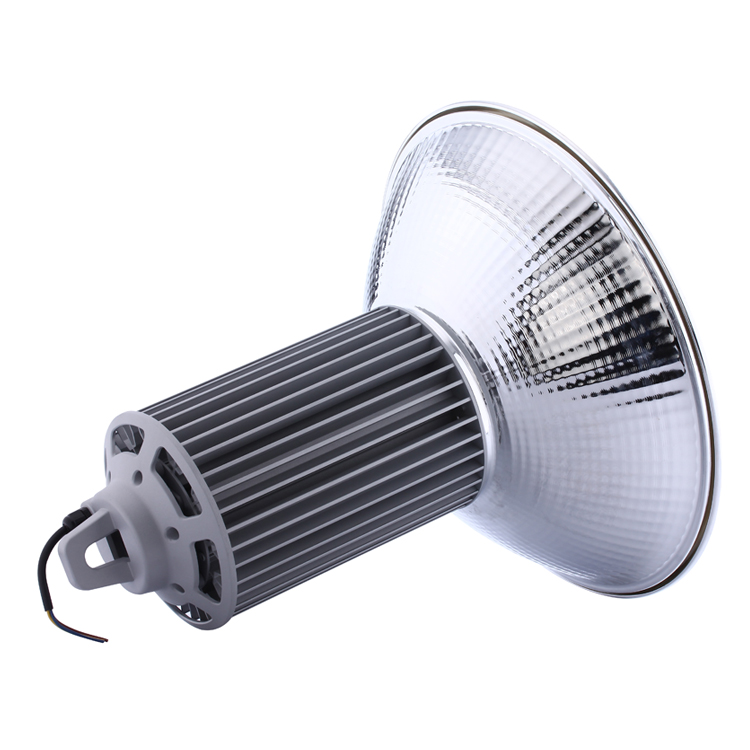

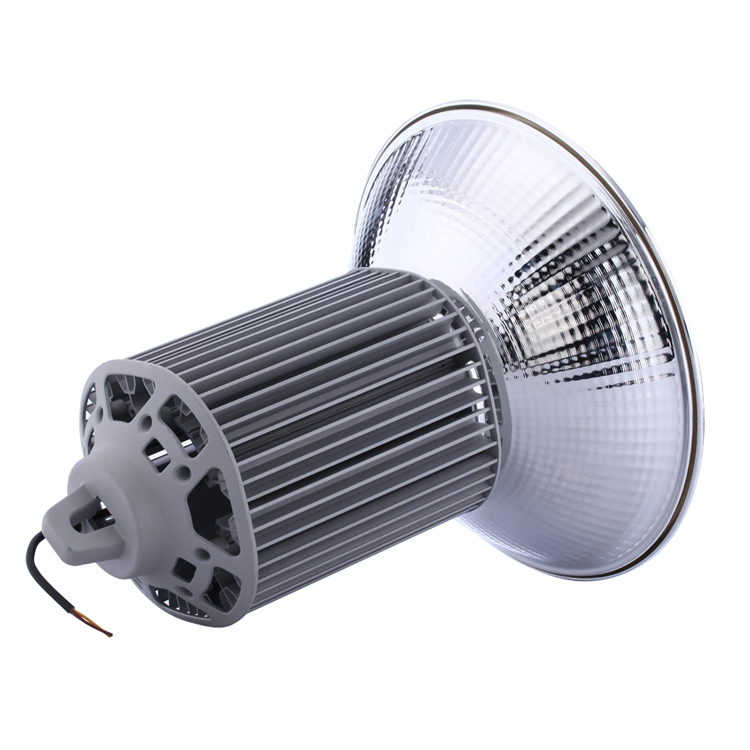

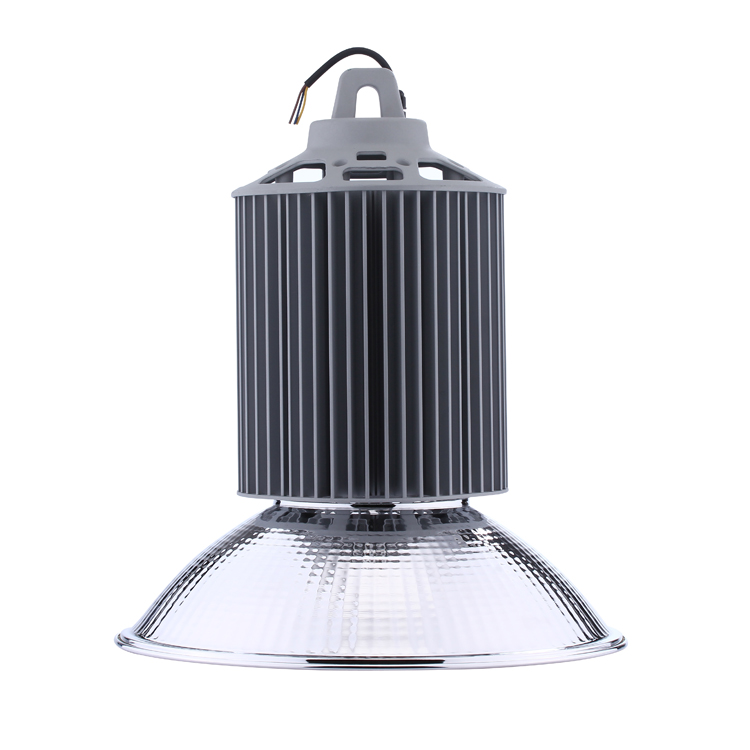

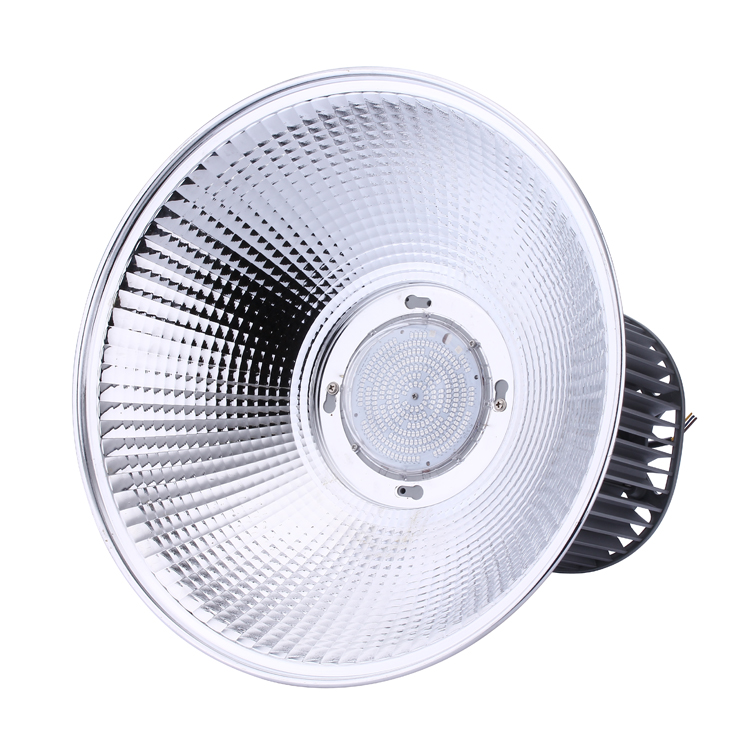

LED-HLL020A

Product name: Led high bay light
Model:LED-HLL020A
Power: 60W~400W
Input voltage:AC90~305V
Frequency:50/60Hz
CCT:2700~6500K
Protection level: IP54
Efficiency:>140lm/w
Application:  Warehouse, Factory, Industrial ,Garage, Workshop,supermarket etc.

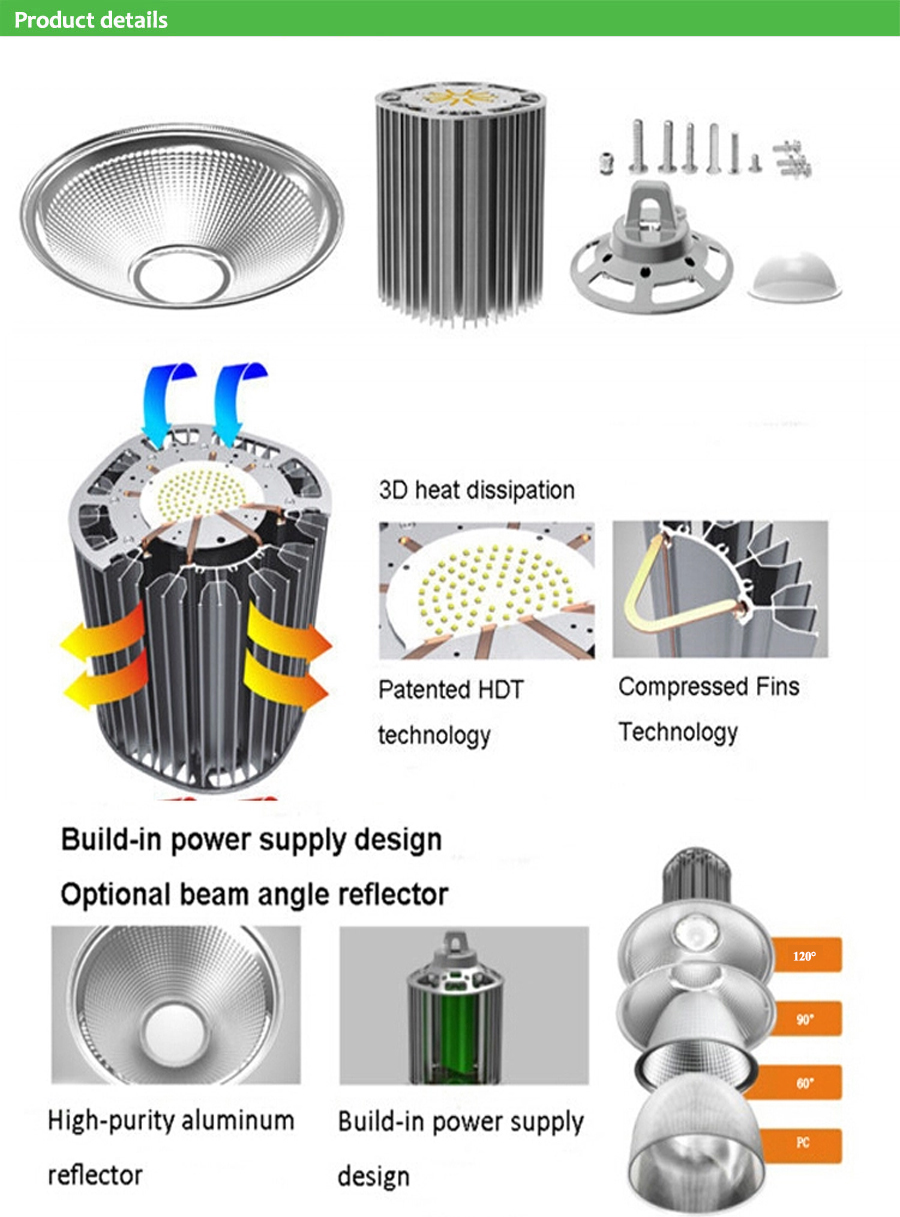

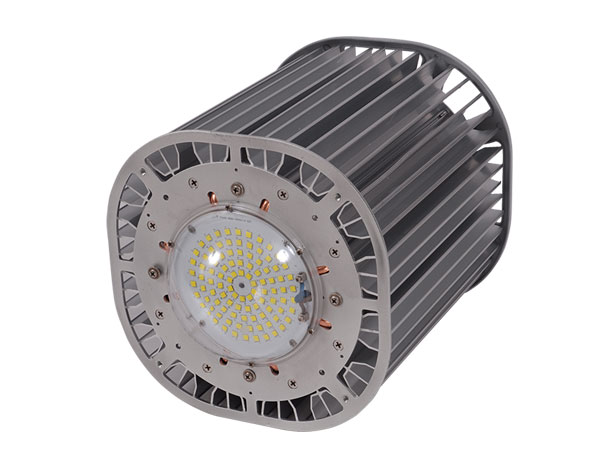

  1. Aluminum Extrusion profiles radiator, thermal faster with copper pipe inside
  2. Charming heat dissipation design
  3. Reflector with anti-glare design which highly reduced the light glare problems
  4. 45°/60°/90°/120°optional beam angle.
  5. High Power, high lumen, high quality, high efficiency, high CRI & luminous flux
  6. Save 80% more energy compared with traditional lighting fixtures
  7. Easy to install and use, secure and reliable
  8. No UV or RF interference, No mercury or lead
  9. Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
  10. High brightness, low consumption, green for environment




Item Descpription  LED-HLL020A-60W LED-HLL020A-80W LED-HLL020A-100W LED-HLL020A-120W LED-HLL020A-150W LED-HLL020A-200W LED-HLL020A-250W LED-HLL020A-300W LED-HLL020A-400W
Input voltage 95~305VAC
Input frequency 50/60HZ
Input wattage 60±5% 80±5% 100±5% 120±5% 150±5% 200±5% 250±5% 300±5% 400±5%
Input current 0.26(230V) 0.35(230V) 0.43(230V) 0.52(230V) 0.71(230V) 0.87(230V) 1.09(230V) 1.30(230V) 1.74(230V)
Power factor >0.95(230V)
Luminous flux (5000K) 8400LM 112000LM 14000LM 16800LM 21000LM 28000LM 35000LM 42000LM 52000LM
Color temperature 3000~6500K
Color rendering index >70Ra
Lumen maintenance(2000h) 98%
Beam angle 45°,90°,120°
Average life  50000h
Work environmental temperature -40°C~­45°C
