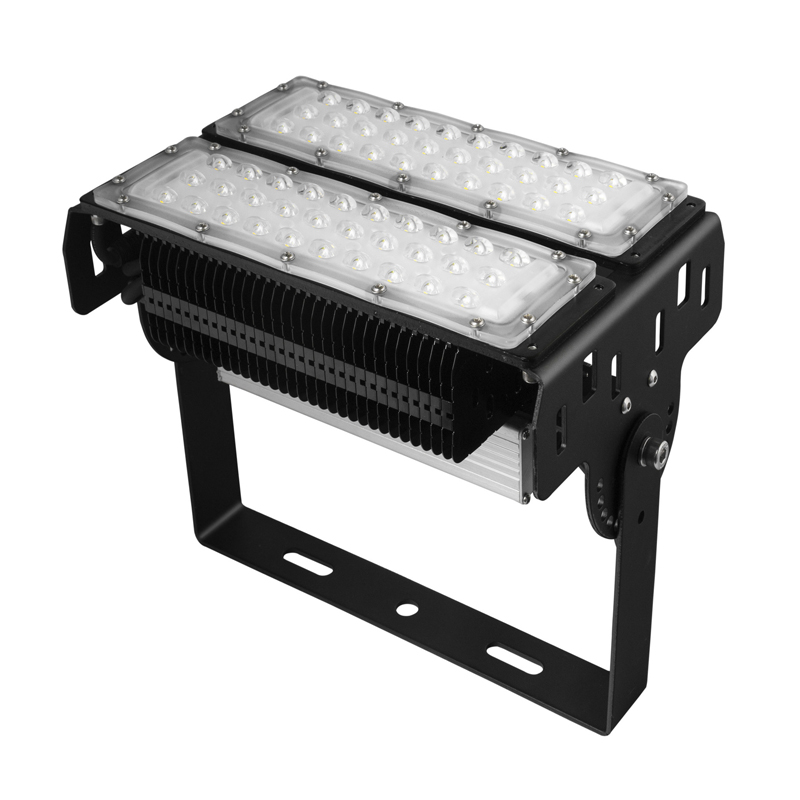

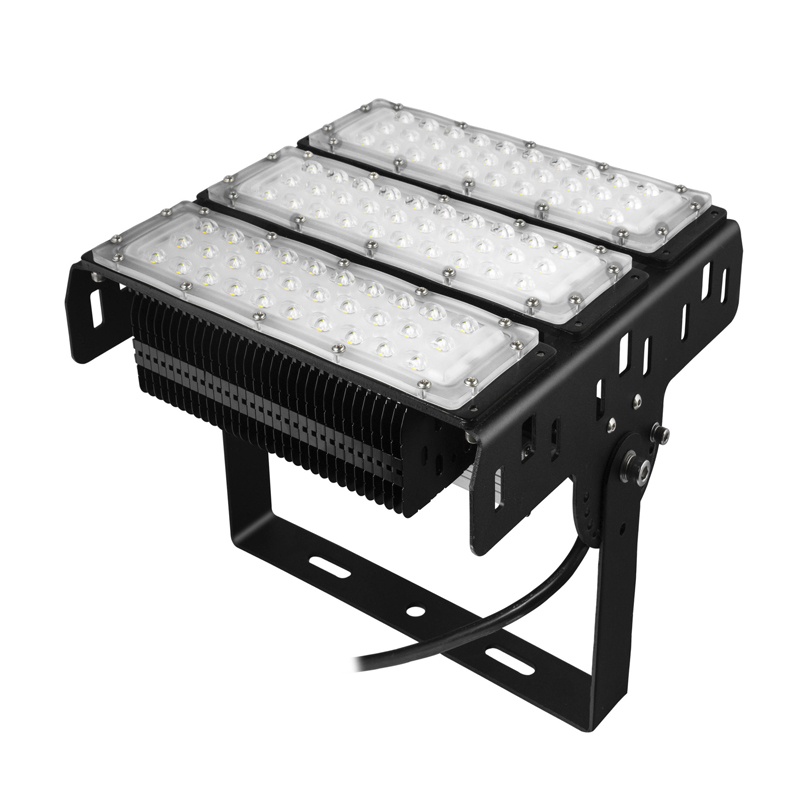

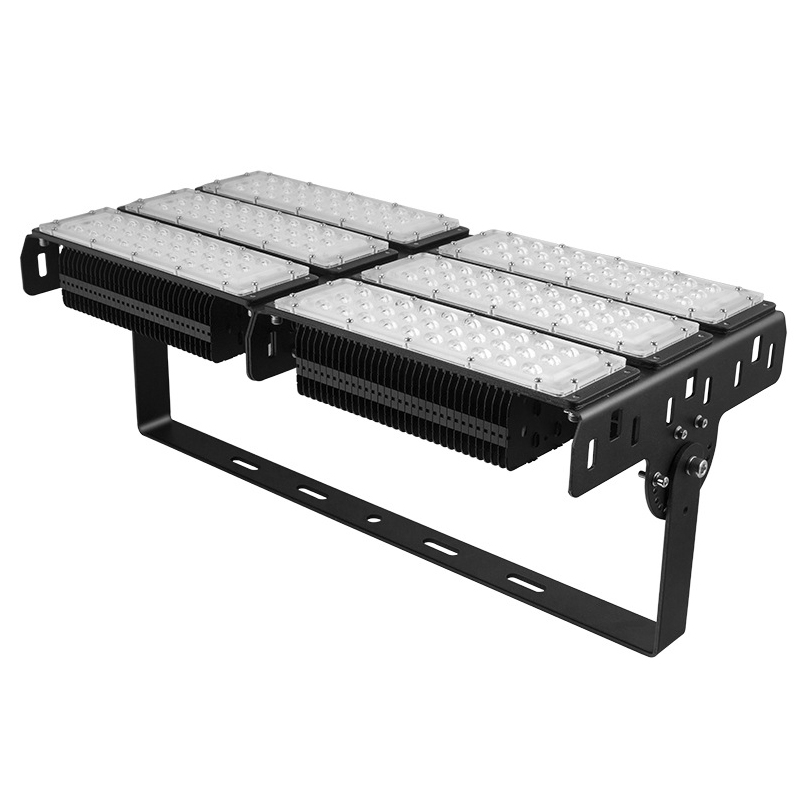

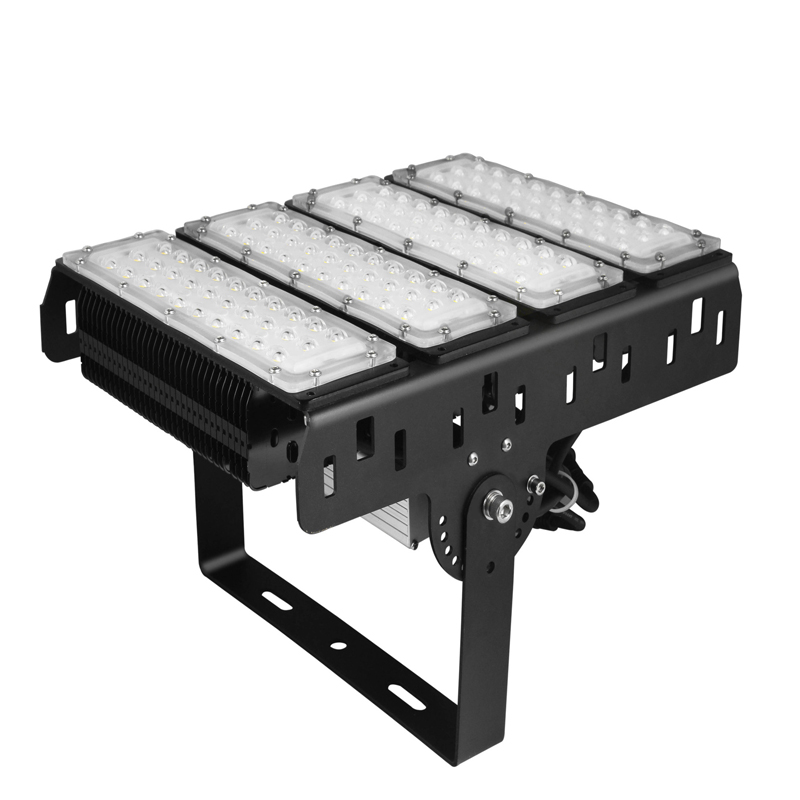

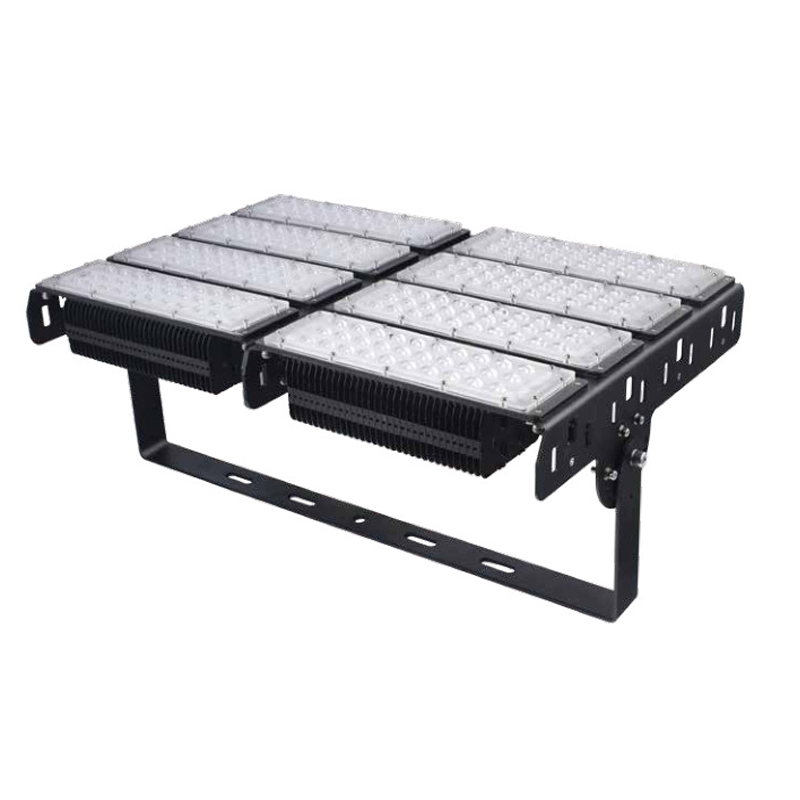

LED-TLL001(50W~500W)_Attains group Co., Ltd.

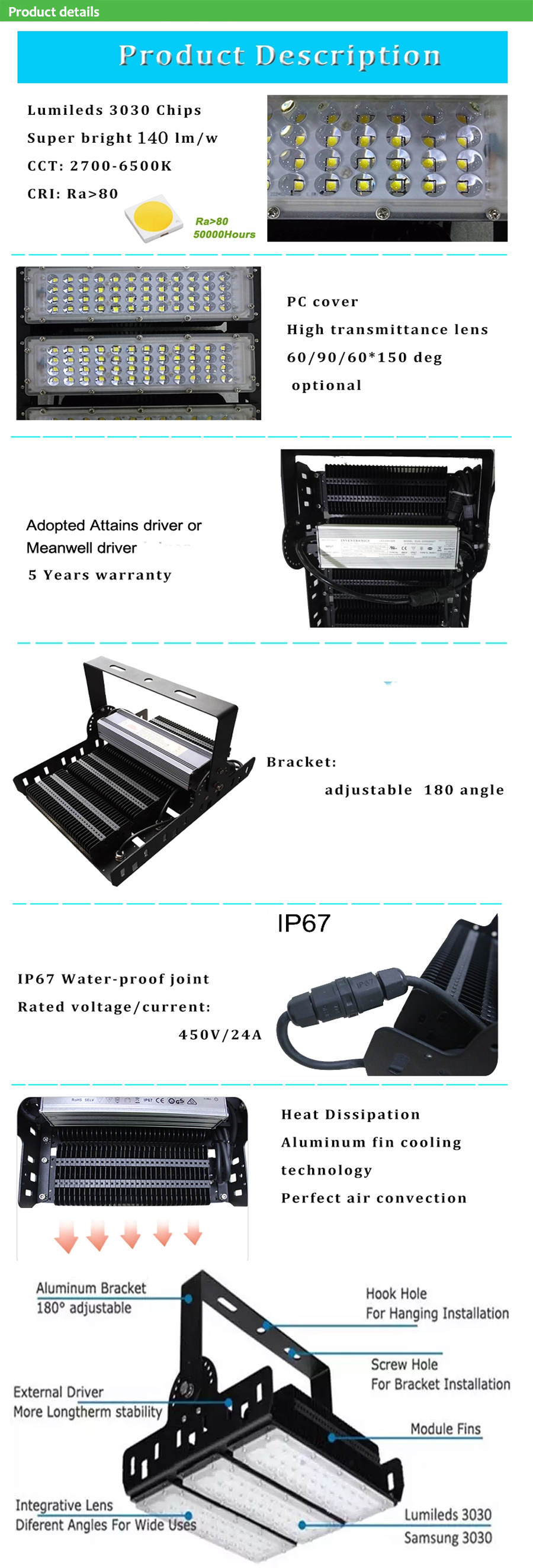

1. Fin-type interlock heat sink for maximum heat dissipation
2. Modular structure of LED industrial Light could be applied for power variation by module increase and decrease.
3. Beam angle of modules could be adjustable to fulfill various lighting requirements.

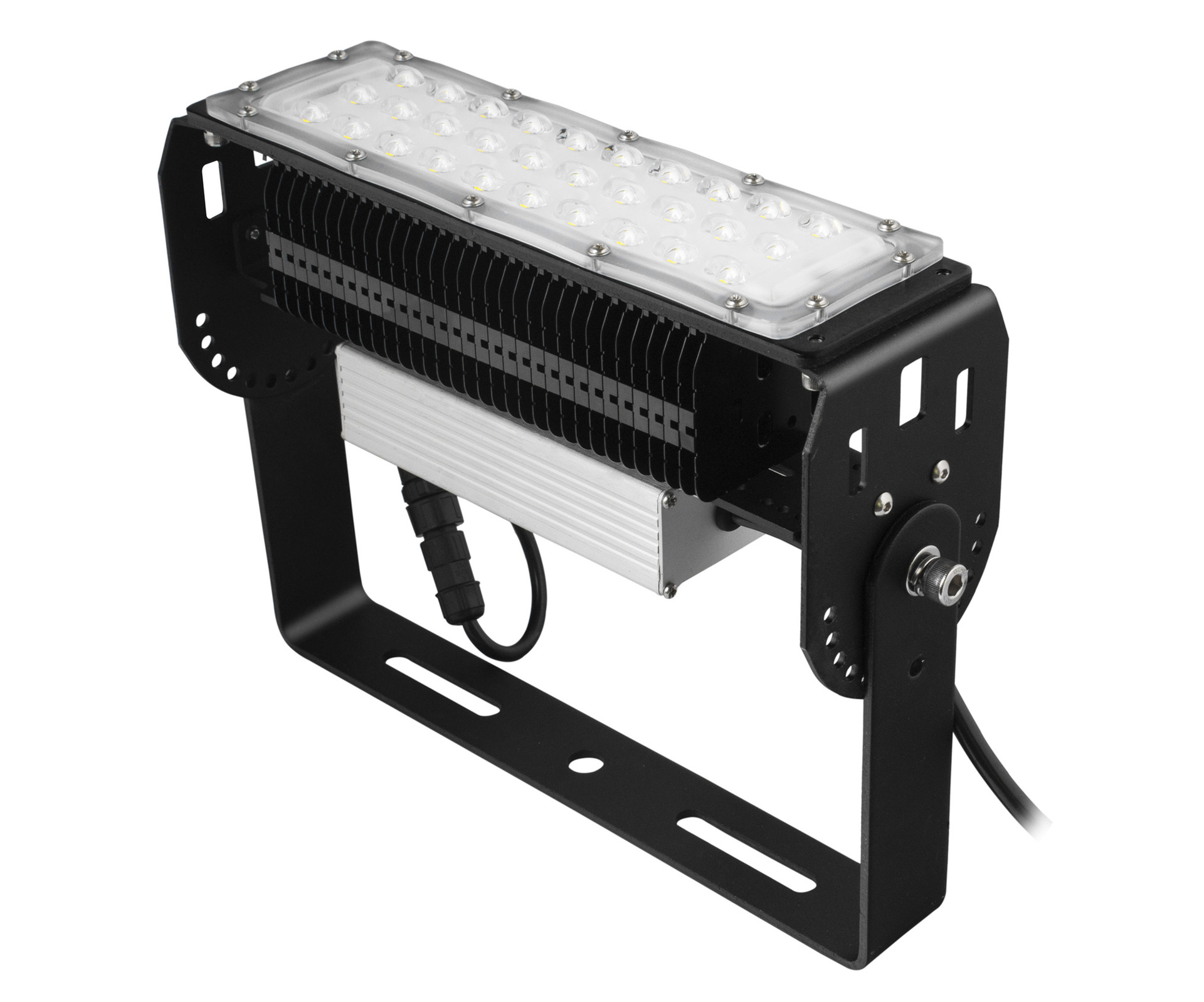

4. Unique design removable power supply and light source
5. IP67 and easy to install and maintain.

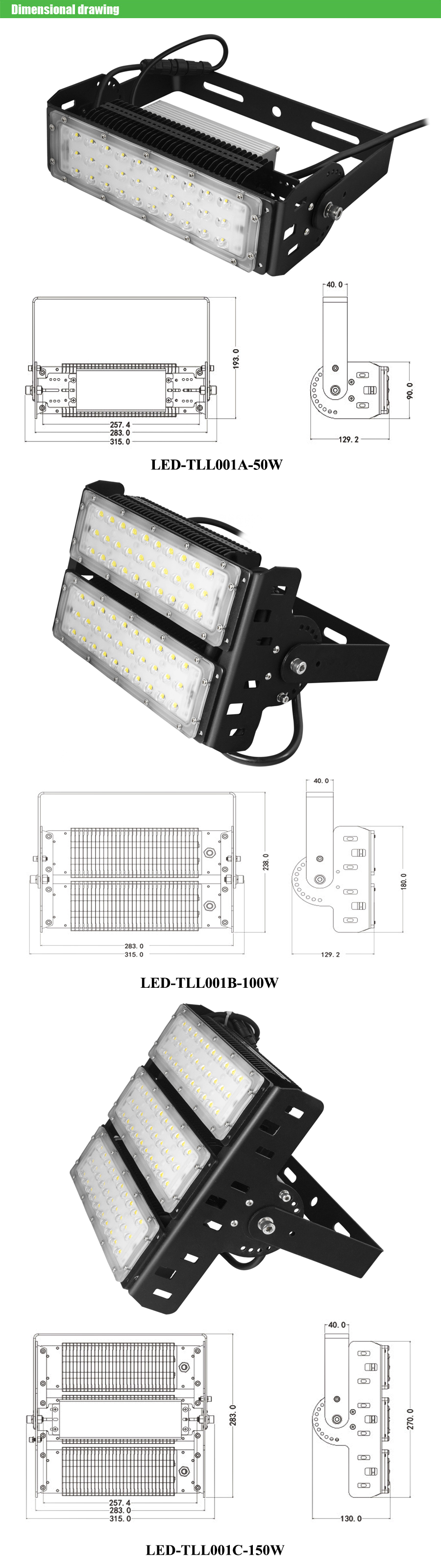

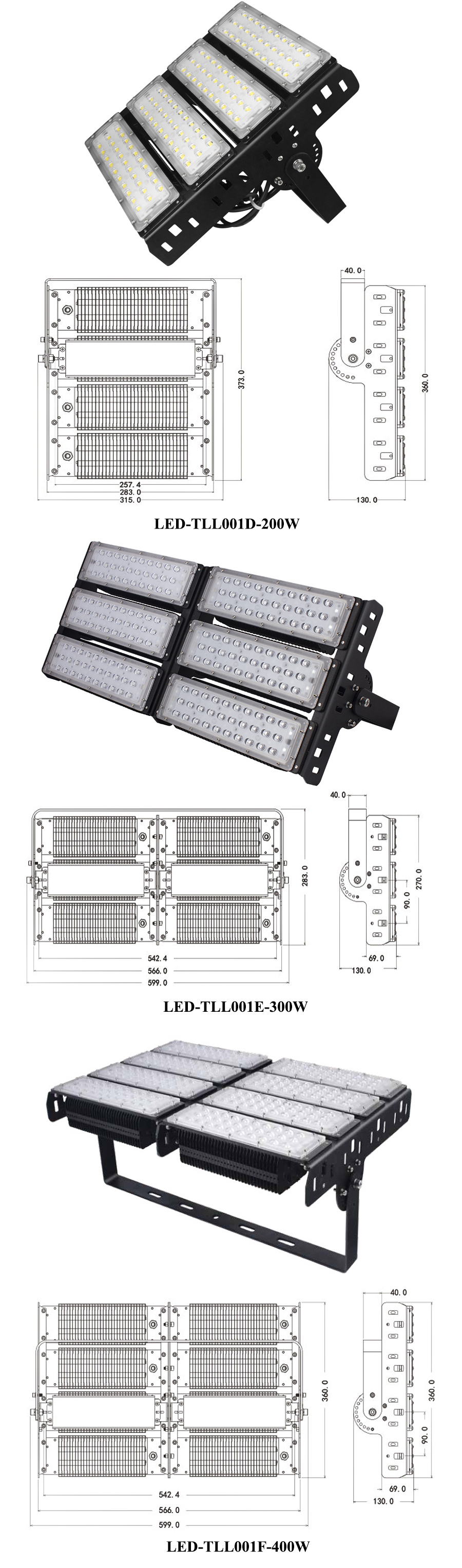

Item Descpription	LED-TLL001A-50W	LED-TLL001B-100W	LED-TLL001C-150W	LED-TLL001D-200W	LED-TLL001E-300W	LED-TLL001F-400W	LED-TLL001F-500W
Input voltage	95~305VAC
Input frequency	50/60HZ
Input wattage	50±5%	100±5%	150±5%	200±5%	300±5%	400±5%	500±5%
Input current	0.22（230V)	0.43(230V)	0.65(230V)	0.87(230V)	1.30(230V)	1.74(230V)	2.17(230V)
Power factor	>0.95
Luminous flux (5000K)	6500LM	13000LM	19500LM	26000LM	39000LM	52000LM	70000LM
Color temperature	3000~6500K
Color rendering index	>70Ra
Lumen maintenance (2000h)	98%
Beam angle	60°,90°,120°
Average life	50000h
Work environmental temperature	-40°C~50°C
