Led > Tunnel light > LED-FLL024

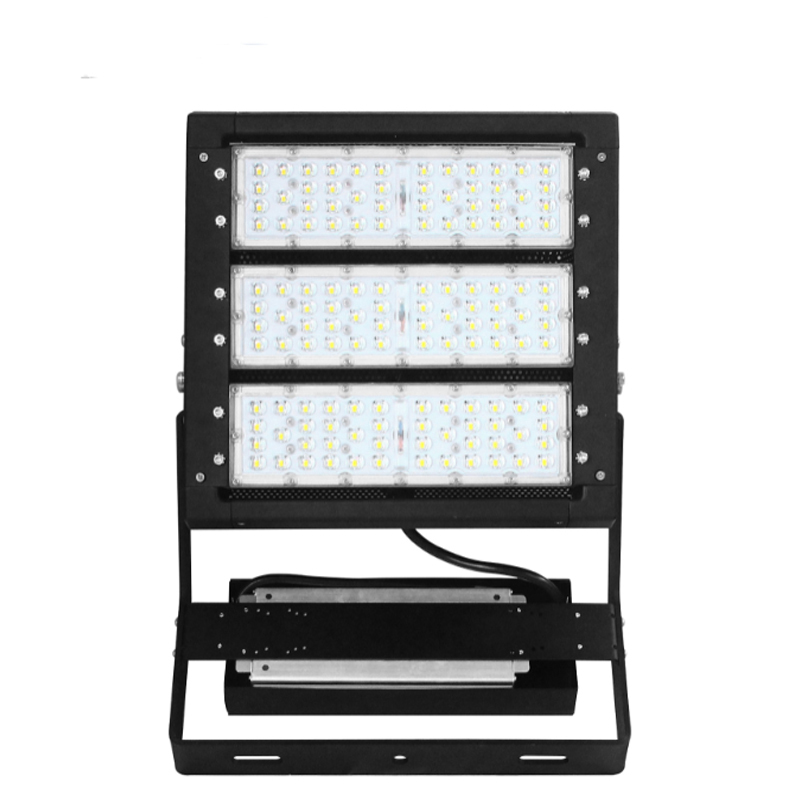

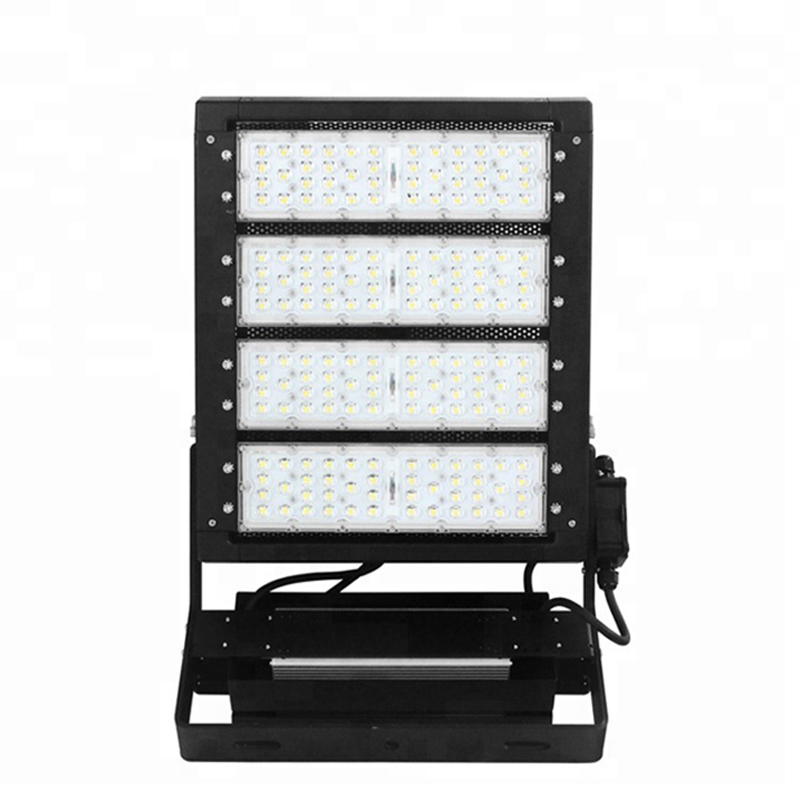

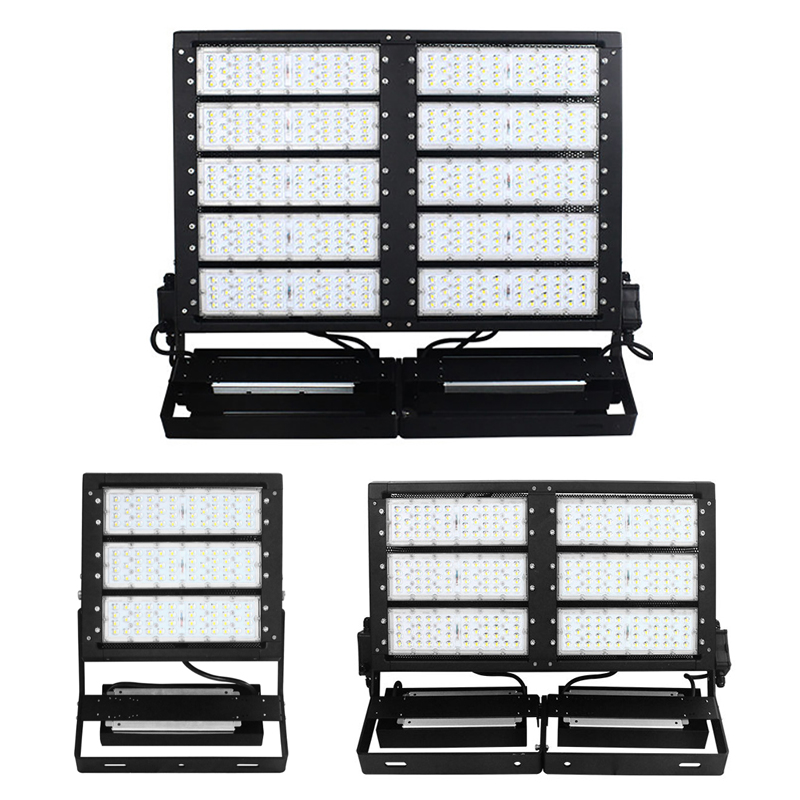

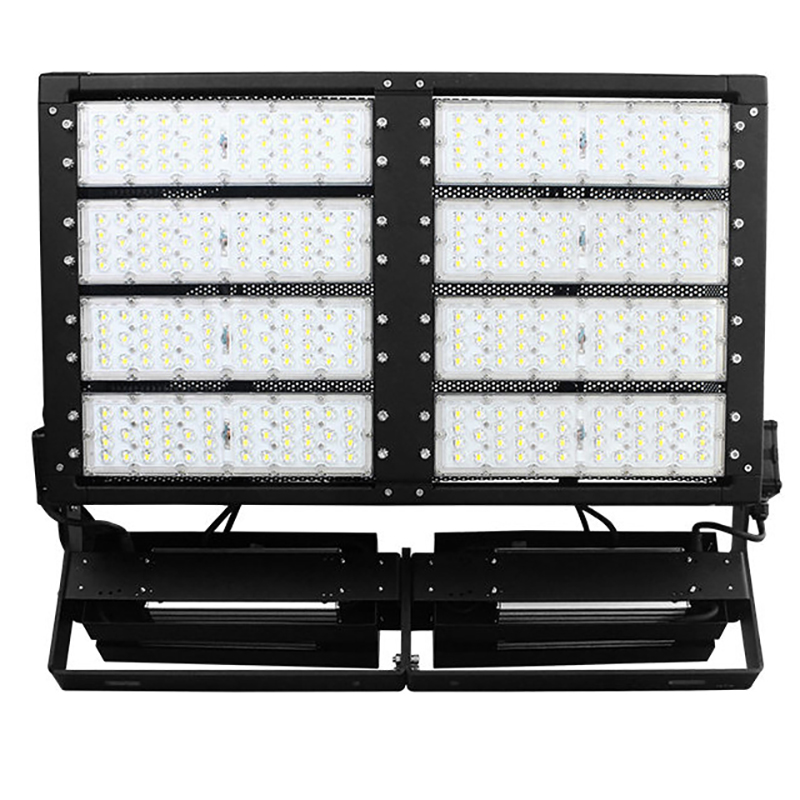

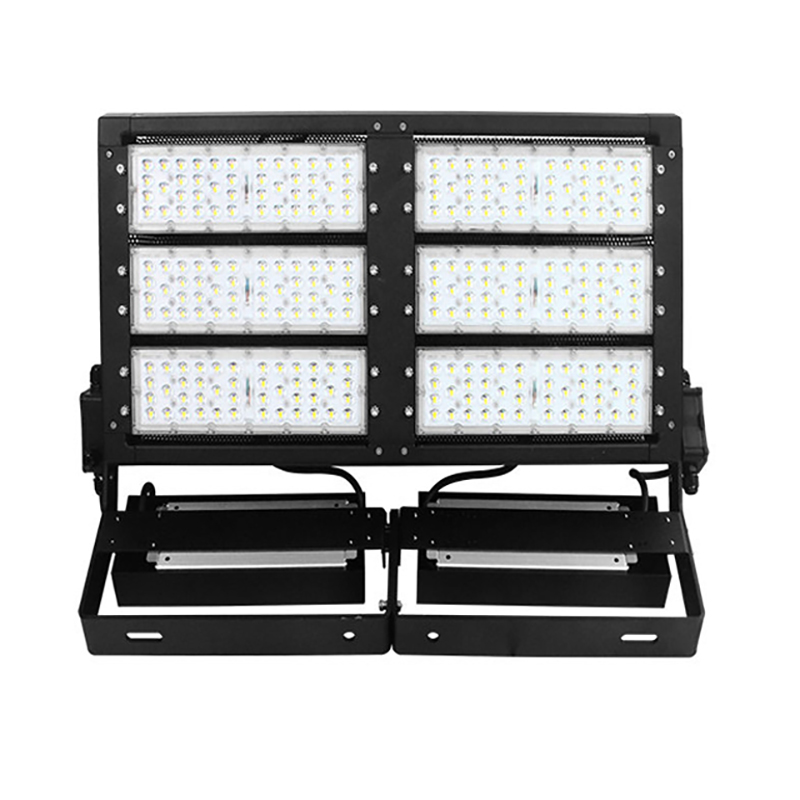

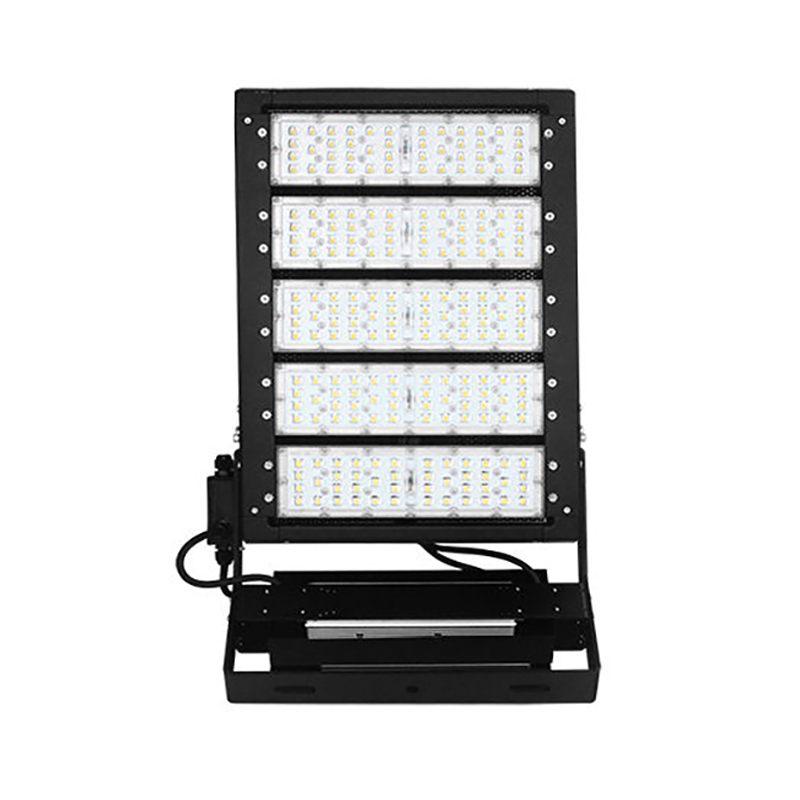

LED-FLL024

Product name: Led flood light
Model:LED-FLL024
Power: 300W~1000W
Input voltage:AC90~305V
Frequency:50/60Hz
CCT:2700~6500K
Protection level: IP67
Efficiency:>140lm/w
Application: Tunnel, Municipal project, City landscape, Building , Outdoor advertisement board etc.

* The whole lamp adopts modular combination design, and the number of modules can be freely selected according to different lighting needs;

* The lamp body frame shell is stamped from sheet metal, which is sturdy and durable, and has a strong wind resistance rating;

* The surface of the lamp body is treated by electrostatic spray, which is corrosion resistant and durable.

* Independent radiator with high quality AL1070 material, with good heat dissipation.

* Adopt high transmittance PC lens, the illumination light is even and soft, and the light transmittance is over 92%;

* A variety of lens angles are available for the module lens (25°, 45°, 60°, 90°, 55*140°)

* Multi-power reinforced mounting bracket can adjust the illumination angle of the lamp freely, adjustable angle: 270°;

* The design of the multi-hole protection cover on the back of the lamp body helps to circulate air and prevent dust, leaves and other substances from accumulating on the heat sink and affecting heat dissipation;
LED Flood light use in large sports field lighting, football, basketball, golf and tennis court,racetrack,
 badminton, roads, high-rise buildings, tower lights, etc. Can also be applied in large square,
 airport, commercial building, construction engineering, farm, amusement parks, parking
 lots, harbor, industrial buildings, and other special lighting environment

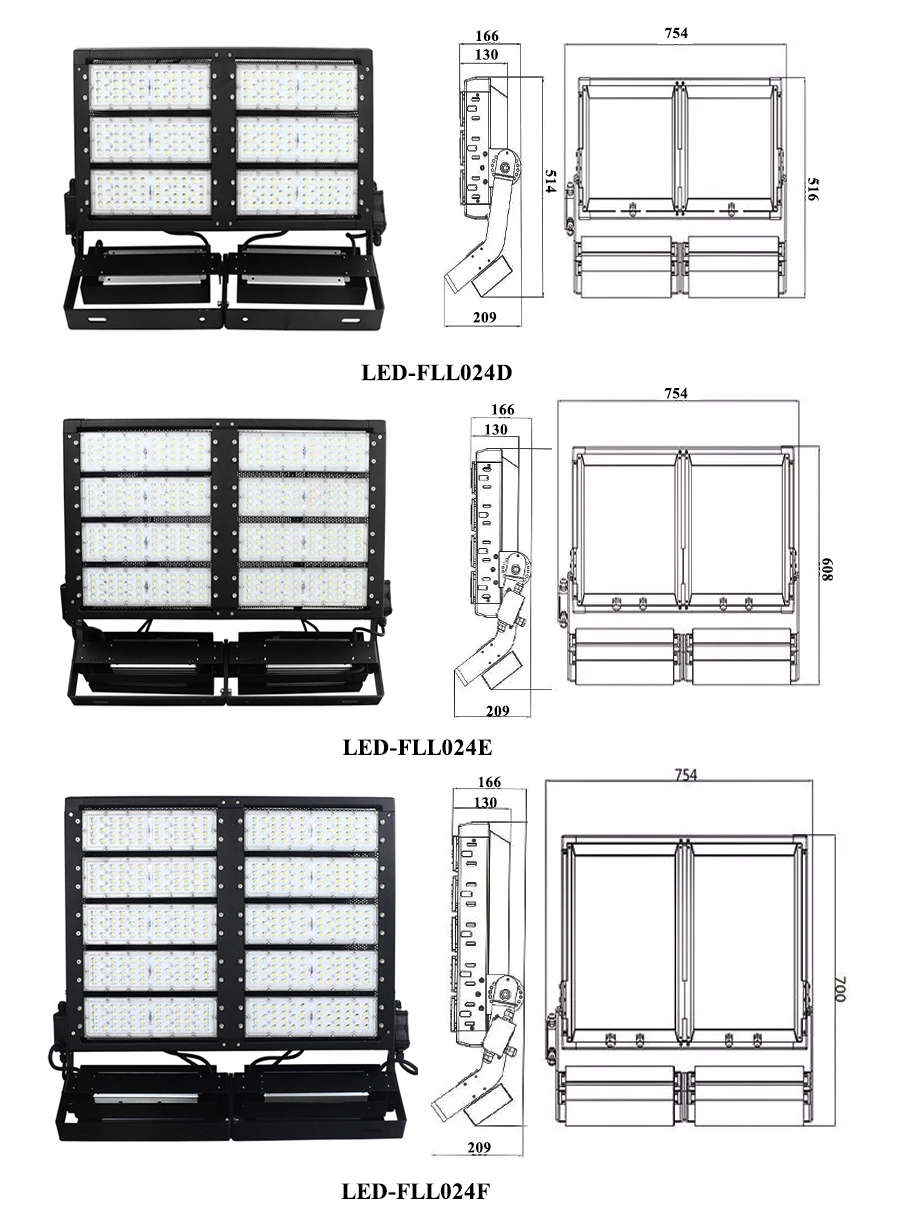

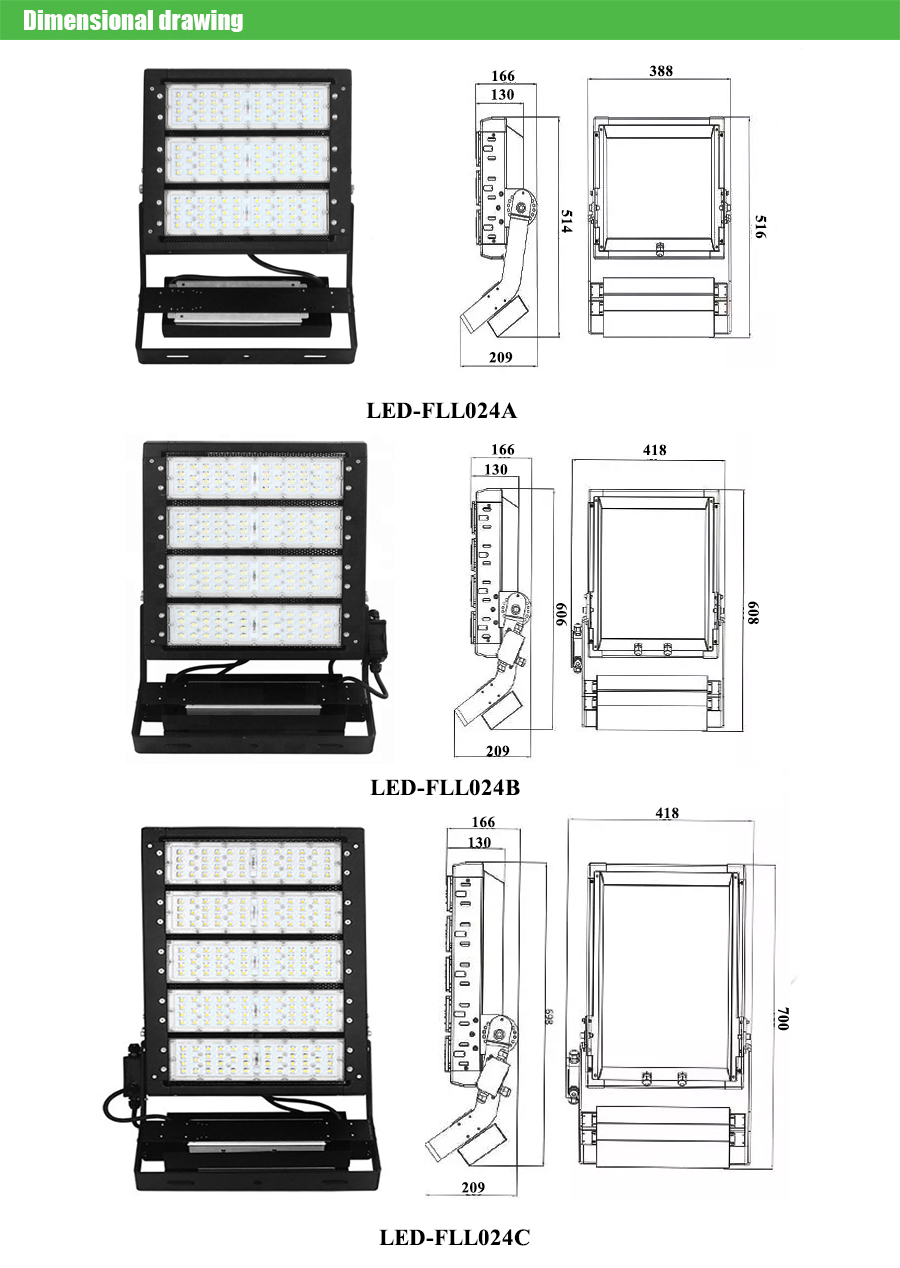

Item Descpription  LED-FLL024A-300W LED-FLL024B-400W LED-FLL024C-500W LED-FLL024D-600W LED-FLL024E-800W LED-FLL024F-1000W
Input voltage 95~305VAC
Input frequency 50/60HZ
Input wattage 300±5% 400±5% 500±5% 600±5% 800±5% 1000±5%
Input current 1.30(230V) 1.74(230V) 2.17(230V) 2.61(230V) 3.48(230V) 4.35(230V)
Power factor >0.95
Luminous flux (5000K) 42000LM 64000LM 70000LM 84000LM 112000LM 140000LM
Color temperature 3000~6500K
Color rendering index >70Ra
Lumen maintenance (2000h) 98%
Beam angle 25°/40°/60°/55°*120°
Average life  50000h
Work environmental temperature -40°C­~50°C
